Product Summary

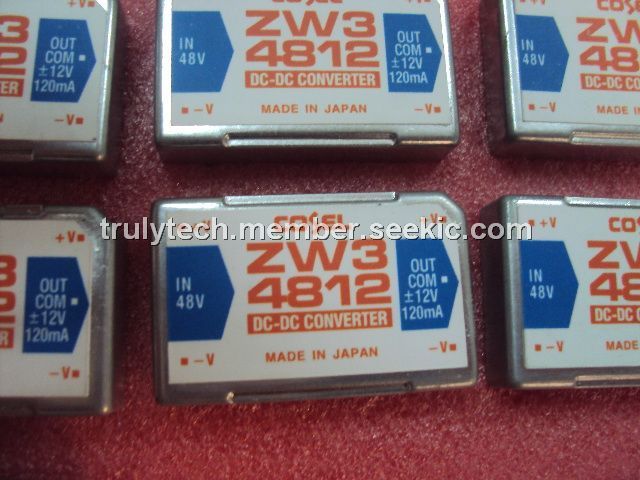

The ZW3-4812 is a DC-DC converter designed for small size and high reliability.
Parametrics
ZW3-4812 specifications: (1)input voltage[V]: 48 (35 - 63); (2)input current[A]: 0.085typ; (3)input efficiency[%]: 70typ; (4)output voltage[V]: ±12 (+24); (5)output current[A]: 0.12; (6)output line regulation[mV]: 60max; (7)output load regulation[mV]: 600max; (8)output ripple[mVp-p]: 120max ; (9)output ripple noise[mVp-p]: 120max; (10)output temperature regulation[mV] 0 to +50℃: 120max; (11)output voltage adjustment range[V]: Fixed; (12)output voltage setting[%]: ±5max (Rated input/output, Ta=25C).
Features
ZW3-4812 features: (1)isolated between input-output; (2)built-in overcurrent protection circuit; (3)small and compact size; (4)five year warranty.

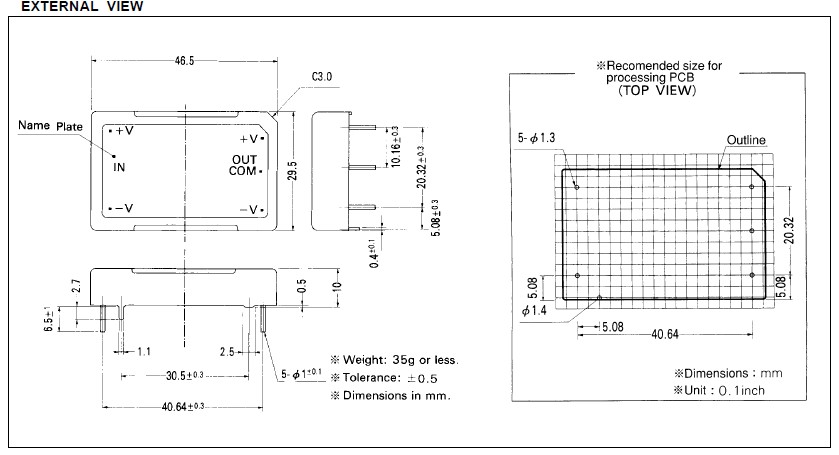

Diagrams
