Product Summary

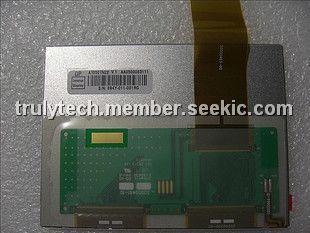

The AT050TN22 V.1 is a LCD module.

Parametrics

Absolute maximum ratings: (1)Power voltage: VCC: -0.3 to 7 V; AVDD: -0.3 to 7 V; VGH: -0.3 to18 V; VGL: -15 to 0.3 V; VGH-VGL: 33 V max; (2)LED Reverse Voltage, Vr: 1.2 V max; (3)LED Forward Current, If: 25 mA max.

Features

Features: (1)LCD size: 5.0 inch(Diagonal); (2)Driver element: a-Si TFT active matrix; (3)Resolution: 640×(RGB) × 480; (4)Display mode: Normally White, Transmissive; (5)Dot pitch: 0.0529(W) × 0.1587(H) mm; (6)Active area: 101.568(W) × 76.176(H) mm; (7)Module size: 117.65(W) × 88.43(H) × 5.7(D) mm; (8)Surface treatment: Anti-Glare; (9)Color arrangement: RGB-stripe; (10)Interface: Digital; (11)Backlight Power consumption: TBD; (12)Panel Power consumption: TBD; (13)Weight: TBD.

Diagrams

AT050
AT050

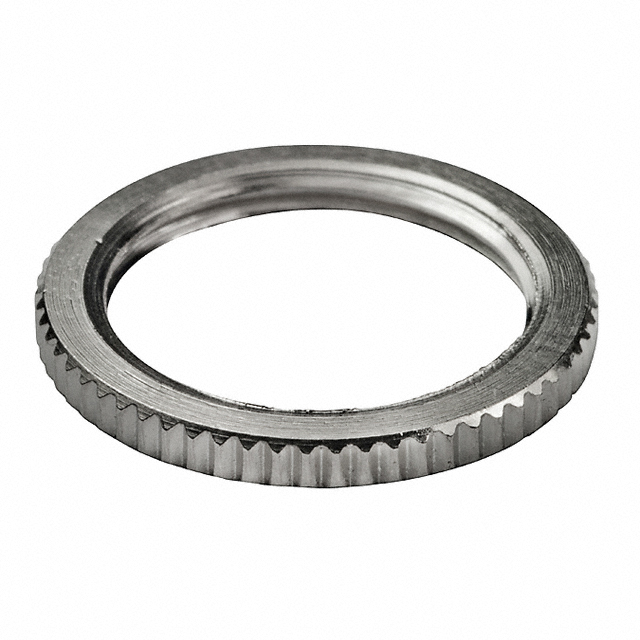

NUT KNURLED SB40 SERIES
Data Sheet
0-1: $0.38
1-10: $0.36
10-50: $0.29
50-100: $0.28
100-250: $0.25
250-500: $0.24
500-1000: $0.20
1000-5000: $0.17
5000-10000: $0.16
AT056T
AT056T
NKK Switches

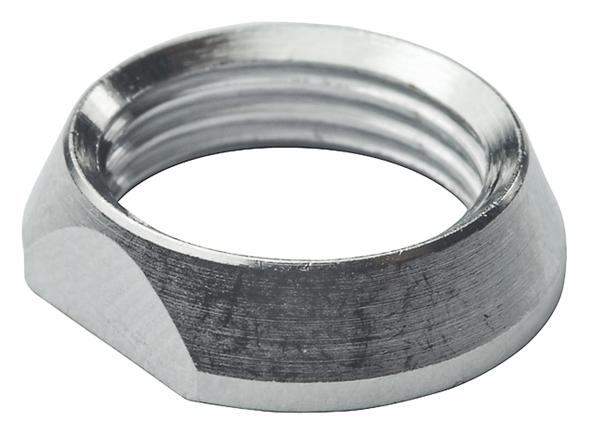

Switch Hardware THREADED DRESS NUT
