Product Summary
The AT89S53-24JC is a low-power, high-performance CMOS 8-bit microcomputer with 12K bytes of downloadable flash programmable and erasable read only memory.
Parametrics
AT89S53-24JC absolute maximum ratings: (1)Operating temperature: -55 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to ground: -1.0V to +7.0V; (4)Maximum operating voltage: 6.6V; (5)DC output current: 15.0mA.
Features
AT89S53-24JC features: (1)Compatible with MCS-51 products; (2)12K bytes of IN-system reprogrammable downloadable flash memory; (3)4.0V to 6V operating range; (4)Fully static operation: 0Hz to 24MHz; (5)Three-level program memory lock; (6)256X 8-bit internal RAM; (7)32 programmable I/O lines; (8)Three 16-bit timer/counters; (9)Nine interrupt sources; (10)Programmable UART serial channel; (11)SPI serial interface; (12)Low power idle and power down modes; (13)Interrupt recovery from power down; (14)Programmable watching timer; (15)Dual data pointer; (16)Power off flag.

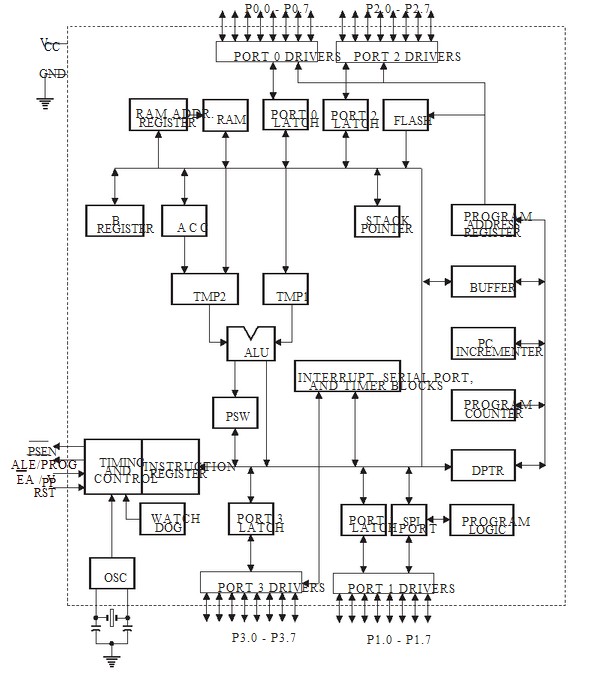

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

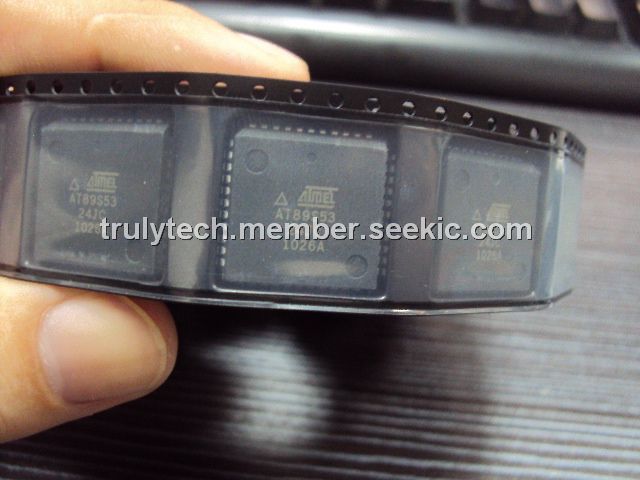

AT89S53-24JC |
Atmel |
8-bit Microcontrollers (MCU) w/12k |
Data Sheet |
Negotiable |
|
|||||||
