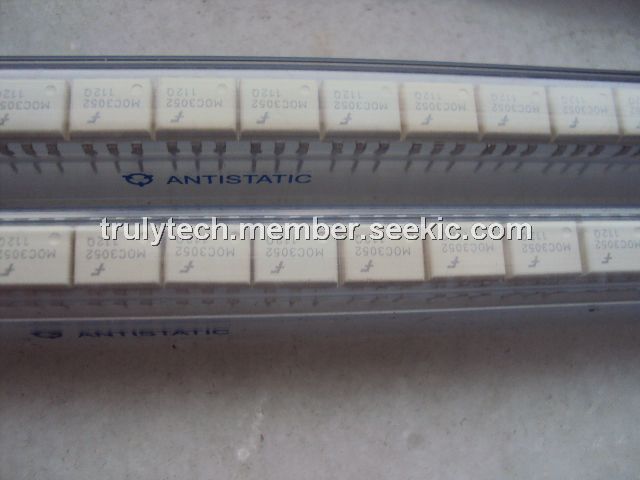

Product Summary
The MOC3052 is a 6-pin DIP random-phase optoisolator triac driver. It consists of a GaAs infrared LED optically coupled to a non–Zero–crossing silicon bilateral AC switch (triac). The MOC3052 Series isolates low voltage logic from 115 and 240 Vac lines to provide random phase control of high current triacs or thyristors. The MOC3052 Series features greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads.
Parametrics
MOC3052 absolute maximum ratings: (1)Reverse Voltage: 3 Volts; (2)Forward Current — Continuous: 60 mA; (3)Total Power Dissipation @ TA = 25℃: 100 mW; (4)Negligible Power in Triac Driver Derate above 25℃: 1.33 mW/℃; (5)Off–State Output Terminal Voltage: 600 Volts; (6)Peak Repetitive Surge Current (PW = 100 ms, 120 pps): 1 A; (7)Total Power Dissipation @ TA = 25℃: 300 mW, Derate above 4 mW/℃.
Features

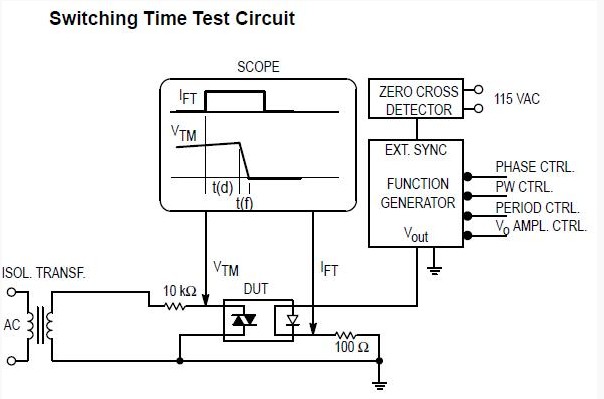

MOC3052 features: (1)Reverse Leakage Current (VR = 3 V): 0.05 to 100 μA; (2)Forward Voltage (IF = 10 mA): 1.15 to 1.5 Volts; (3)Peak Blocking Current, Either Direction (Rated VDRM) @ IFT per device: 10 to 100 nA; (4)Peak On–State Voltage, Either Direction (ITM = 100 mA Peak): 1.7 to 2.5 Volts; (5)Critical Rate of Rise of Off–State Voltage @ 400 V (Refer to test circuit): 1000 V/ms.
Diagrams
