Product Summary

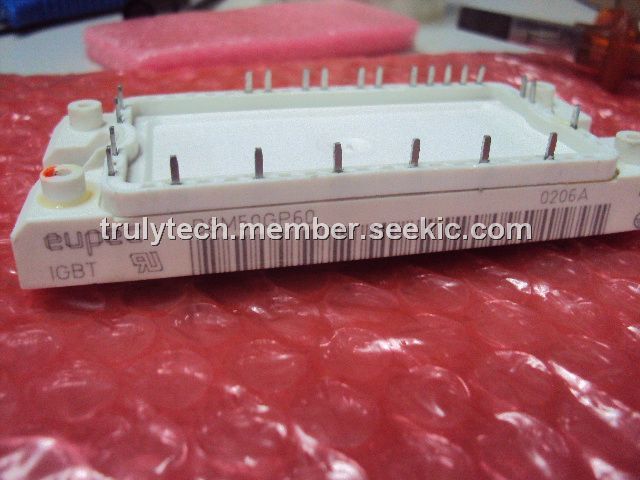

The BSM50GP60 is an IGBT module.
Parametrics
BSM50GP60 absolute maximum ratings: (1)Repetitive peak reverse voltage: 1600V; (2)RMS forward current per chip: 40A; (3)DC forward current: 50A; (4)Surge forward current: 315/260A; (5)I2T-value: 500/340 A2s.
Features
BSM50GP60 characteristics: (1)Forward voltge: 1.35V; (2)Threshold voltage: 0.8V; (3)Slope resistance: 10.5mΩ; (4)Reverse current: 2mA; (5)Lead resistance, terminals-chip: 5mΩ.

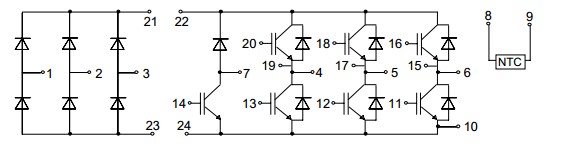

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BSM50GP60 |
Infineon Technologies |
IGBT Modules 600V 50A PIM |
Data Sheet |
|
|
||||||||
|
BSM50GP60_B2 |
Infineon Technologies |
IGBT Modules N-CH 600V 70A |
Data Sheet |
|
|
||||||||
|
BSM50GP60G |
Infineon Technologies |
IGBT Modules 600V 50A PIM |
Data Sheet |
|
|
||||||||
