IHLM-2525CZER

Shielded construction, 5.0 MHz, molded, low profile, high current inductor, SMD, 105 mOhm

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.15

PartNumber:: IHLM-2525CZER

Brand:: Vishay Siliconix - vishay | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Candy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-04

From Other Seller

Part Number:IHLM-2525CZER
US $0.10 - 0.15
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IHLM-2525CZER is a molded, low profile, high current inductor. The applications of the IHLM-2525CZER include: (1)PDA/notebook/desktop/server applications; (2)High current POL converters; (3)Low profile, high current power supplies; (4)Battery powered devices; (5)DC/DC converters in distributed power systems; (6)DC/DC converter for Field Programmable Gate Array(FPGA); (7)Harsh environments including moisture, chemicals and salt spray.

Parametrics

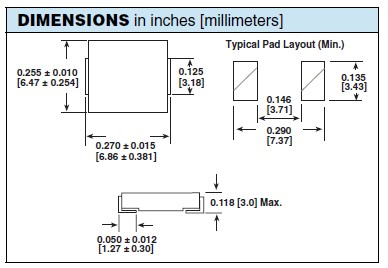

IHLM-2525CZER specifications: (1)Category: Inductors, Coils, Chokes; (2)Family: Fixed ; (3)Inductance: 10μH ; (4)Current: 3A; (5)Current - Saturation: 7A; (6)Current -Temperature Rise: 3A; (7)Tolerance: ±20%; (8)Shielding: Shielded; (9)DC Resistance (DCR): 105 mOhm Max; (10)Package / Case: 0.270" L x 0.255" W x 0.118" H (6.86mm x 6.47mm x 3.00mm); (11)Mounting Type: Surface Mount ; (12)Packaging: Tape & Reel (TR); (13)Operating Temperature: -55℃ to 125℃; (14)Frequency - Test: 100kHz.

Features

IHLM-2525CZER features: (1)Lowest molded height (3.0 mm) in this package footprint; (2)Shielded construction; (3)Frequency range up to 5.0 MHz; (4)Lowest DCR/μH, in this package size; (5)Handles high transient current spikes without saturation; (6)Ultra low buzz noise, due to composite construction; (7)Encapsulated body offers improved environmental protection and moisture resistance; (8)Higher dielectric withstanding voltage vs. IHLP; (9)Flame retardant encapsulant (UL 94 V-0); (10)Corrosion resistant package; (11)Compliant to RoHS directive 2002/95/EC.
