Product Summary

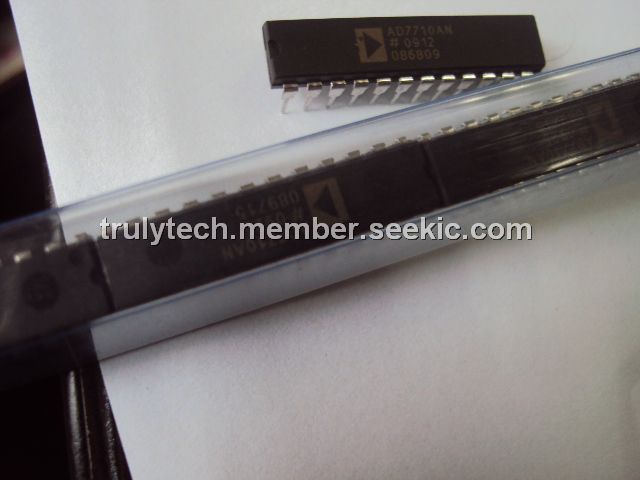

The AD7710AN is a complete analog front end for low frequency measurement applications. Its applications include weigh scales, thermocouples, process control, smart transmitters, chromatography.

Parametrics

AD7710AN specifications: (1)Output voltage: 2.5V nom; (2)Initial tolerance: ±1%max.; (3)Drift: 20ppm/℃typ; (4)Output noise: 30μV typ; (5)Line regulation: 1mV/V max.; (6)Load regulation: 1.5mV/mA max.; (7)External current: 1mA max.

Features

AD7710AN features: (1)Charge balancing ACD, 24Bits, no missing codes; (2)2-Channel programmable gain front end, gains from 1 to 128, differential inputs; (3)Low-pass filter with programmable filter cutoffs; (4)Ability to read/write calibration coefficients; (5)Bidirectional microcontroller serial interface; (6)Internal/external reference option; (7)Single- or dual-supply operation; (8)Low power with power-down mode.

Diagrams

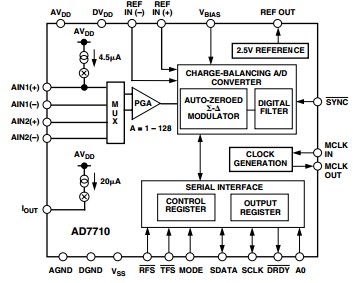

AD7710AN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD7710AN
AD7710AN


IC ADC SIGNAL CONDITIONING 24DIP

Data Sheet

0-15: $19.50
AD7710ANZ
AD7710ANZ


IC ADC SIGNAL CONDITIONING 24DIP

Data Sheet

0-1: $21.16
1-10: $19.57
10-100: $16.71
100-250: $15.34
250-500: $14.60
500-1000: $14.10
