Product Summary

The AT043TN24 V.1 is a 4.3INCH touch screen panel LCD module.

Parametrics

Absolute maximum ratings: (1)Power voltage, VDD: -0.5 to 5.0V; (2)Input signal voltage Logic input: -0.5 to 5.0V; (3)Operation temperature, TOP: -10 to 60℃; (4)Storage temperature, TST: -20 to 70℃; (5)LED Reverse Voltage, VR: 1.2V; (6)LED Forward Current, IF: 25mA.

Features

Features: (1)LCD size: 4.3 inch(Diagonal); (2)Driver element: a-Si TFT active matrix; (3)Resolution: 480 × 3 (RGB) × 272; (4)Display mode: Normally White, Transmissive; (5)Dot pitch: 0.066(W) × 0.198(H) mm; (6)Active area: 95.04(W) × 53.856(H) mm; (7)Module size: 105.5(W) × 67.2(H) × 4.05(D) mm Note 1; (8)Surface treatment: Anti-Glare; (9)Color arrangement: RGB-stripe; (10)Interface: Digital; (11)Backlight Power consumption: TBD; (12)Panel Power consumption: TBD; (13)Weight: TBD.

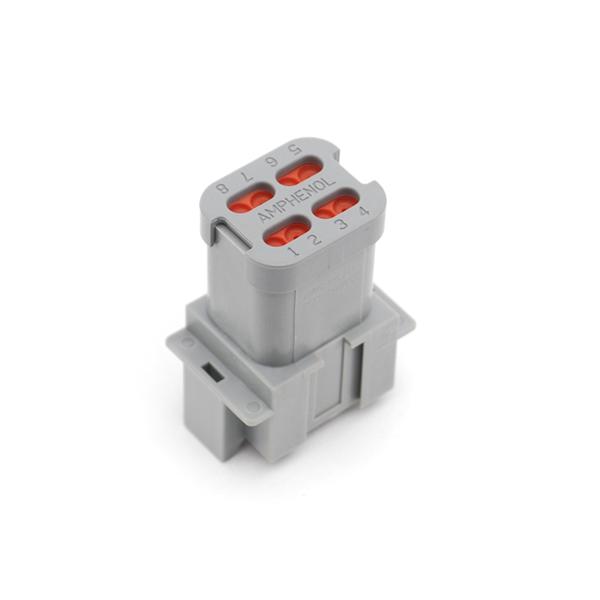

AT04-08PA
AT04-08PA
Amphenol SINE Systems
Automotive Connectors AT Series Receptacle 8 Way Key A
Data Sheet
0-1: $0.96
1-100: $0.73
100-500: $0.68
500-1000: $0.56

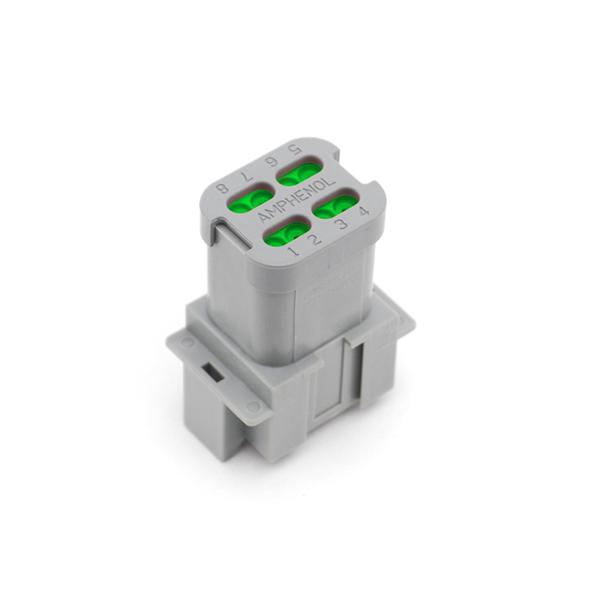

AT04-08PB-MM01
AT04-08PB-MM01
Amphenol SINE Systems
Automotive Connectors 8P REC END CAP SEAL KEY POSITION B
Data Sheet
0-1: $2.24
1-100: $2.00
100-500: $1.92
500-1000: $1.52
AT04-08PC
AT04-08PC
Amphenol SINE Systems
Automotive Connectors AT Series Receptacle 8 Way Key C
Data Sheet
0-1: $1.70
1-25: $1.47
25-50: $1.33
50-100: $1.03
AT04-12PA-MM01
AT04-12PA-MM01
Amphenol SINE Systems
Automotive Connectors AT Rec Enhanced A 12 Way Red. Dia End Cap
Data Sheet
0-1: $2.02
1-100: $1.83
100-500: $1.75
500-1000: $1.49
AT04-12PC-RD01
AT04-12PC-RD01
Amphenol SINE Systems
Automotive Connectors 12P RECEP W/ SEAL KEY POSITION C
Data Sheet
0-1: $2.37
1-100: $2.11
100-500: $2.03
500-1000: $1.61
AT04-12PA-RD01
AT04-12PA-RD01
Amphenol SINE Systems
Automotive Connectors AT Rec Enhanced A Key Red. Dia 12 Way
Data Sheet
0-1: $1.67
1-100: $1.52
100-500: $1.45
500-1000: $1.24
