Product Summary
The HLMP-2550 is a rectangular light source designed for a variety of applications where a large bright source of light is required. The applications of the HLMP-2550 include business machine message annunciators, telecommunications indicators, front panel process status indicators, PC board identifiers, bar graphs.
Parametrics
HLMP-2550 absolute maximum ratings: (1)Average power dissipation per LED chip: 135mW; (2)Peak forward current per LED chip: 90mA; (3)Average forward current per LED chip: 25mA; (4)DC forward current per LED chip: 30mA; (5)Reverse voltage per LED chip: 6V; (6)Operating temperature range: -40 to 85℃; (7)Storage temperature range: 40 to 85℃.
Features
HLMP-2550 features: (1)Large bright, uniform light emitting areas; (2)Choice of colors; (3)Categorized for light output; (4)Yellow and Green categorized for dominant wavelength; (5)Excellent ON-OFF contrast; (6)X-Y stackable; (7)Flush mountable; (8)Can be used with panel and legend mounts; (9)Light emitting surface suitable for legend sttachment per Application Note 2012; (10)HLCP-X100 Series designed for low current operation; (11)Bicolor devices available.

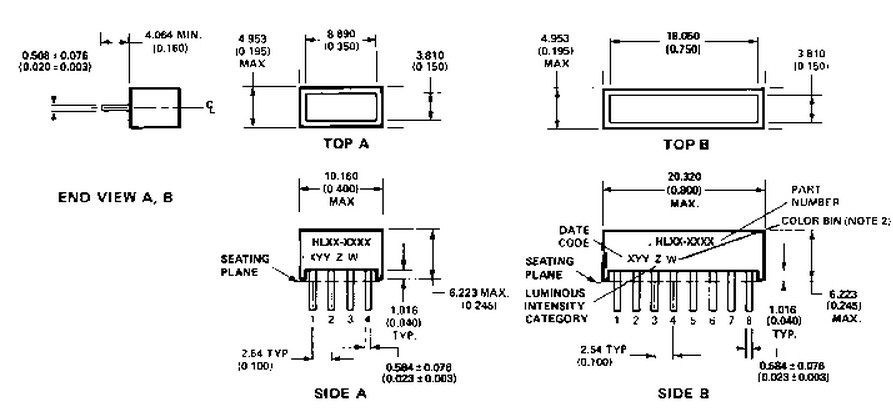

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HLMP-2550 |
Avago Technologies |
LED Bars and Arrays Green 1 Elemt 2.2 V 50 mcd |
Data Sheet |
|
|
||||||||||||
 |
HLMP-2550-FG000 |
Avago Technologies |
LED Bars and Arrays Green 1 Elemt 2.1 V 76.2 mcd |
Data Sheet |
|
|
||||||||||||
