Product Summary

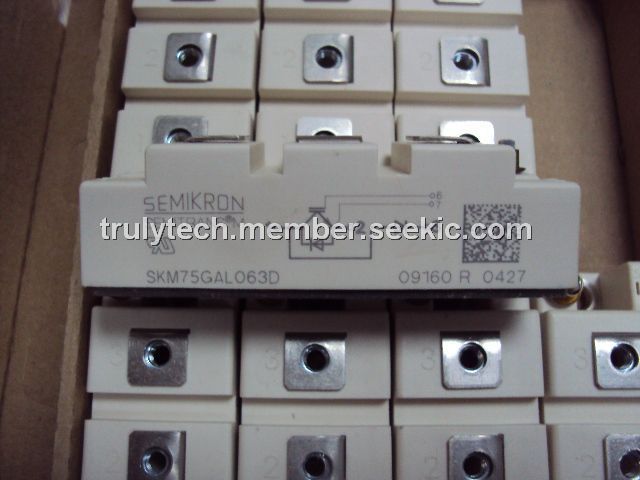

The SKM75GAL063D is a superfast NPT-IGBT module. It is intended for switching, switched mode power supplies, UPS, three phase inverters for servo/AC motor speed control, etc.
Parametrics
Absolute maximum ratings:(1)Vces of IGBT, Tj=25℃: 600V; (2)Ic of IGBT, Tj=150℃, Tcase=25℃: 100A; (3)Ic of IGBT, Tj=150℃, Tcase=75℃: 75A; (4)Icrm of IGBT, Icrm=2xIcnom: 150A; (5)Vges of IGBT: ±20V; (6)Tpsc of IGBT: Vcc=300V, Vge≤20V, Tj=125℃,Vces＜600V: 10μs; (7)If of inverse diodes, Tj=150℃, Tcase=25℃: 75A; (8)If of inverse diodes, Tj=150℃, Tcase=80℃: 50A; (9)Ifrm of inverse diodes, Ifrm=2xIfnom: 150A; (10)Ifsm of inverse diodes, Tp=10ms, sin., Tj=150℃: 440A; (11)If of freewheeling diode, Tj=150℃, Tcase=25℃: 100A; (12)If of freewheeling diode, Tj=150℃, Tcase=80℃: 75A; (13)Ifrm of freewheeling diode, Ifrm=2xIfnom: 200A; (14)Ifsm of freewheeling diode, Tp=10ms, sin., Tj=150℃: 720A.
Features
Features: (1)N-channel, homogeneous Si-structure; (2)low tail current with low temperature dependance; (3)high short circuit capability, self limiting if term.G is lamped to E; (4)very low Cies, Coes, Cres; (5)fast and soft inverse CAL diodes; (6)isolated copper baseplate using DBC direct copper bonding technology without hard mould; (7)large clearance (10 mm) and creepage distances (20 mm).

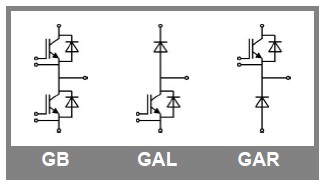

Diagrams
 |
