Product Summary
The M68729 is a RF power module.
Parametrics
M68729 absolute maximum ratings: (1)VCC, Supply voltage: 17 V ; (2)ICC, Total current: 10 A ; (3)Pin (max), Input power at ZG=ZL=50Ω, VCC1≤12.5V: 600 mW ; (4)PO (max), Output power at ZG=ZL=50Ω, VCC1≤12.5V: 40 W ; (5)TC (OP), Operation case temperature at ZG=ZL=50Ω, VCC1≤12.5V -30 to +110 ℃ ; (6)Tstg, Storage temperature: -40 to +110 ℃.
Features
M68729 characteristics: (1)f, frequency rang at ZG=ZL=50Ω, VCC1=12.5V, pin=300 mW: 220 to 245 MHZ; (2)PO, output power at ZG=ZL=50Ω, VCC1=12.5V, pin=300 mW: 30 W min; (3)ηt, total efficiency at ZG=ZL=50Ω, VCC1=12.5V, pin=300 mW: 40% min; (4)2fo, 2nd, harmonic at ZG=ZL=50Ω, VCC1=12.5V, pin=300 mW: -30dBC max; (5)3fo, 3nd, harmonic at ZG=ZL=50Ω, VCC1=12.5V, pin=300 mW: -30dBC max; (6)pin, input VSWR at ZG=ZL=50Ω, VCC1=12.5V, pin=300 mW: 3 max.

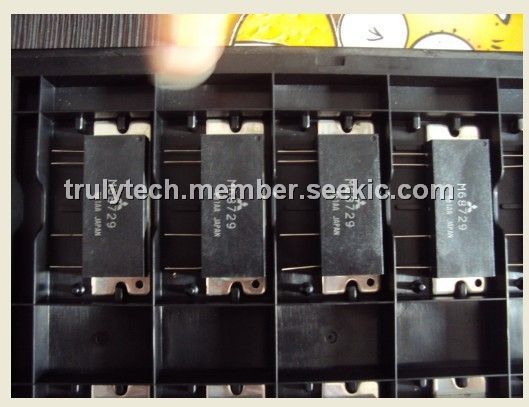

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M68729 |
Other |
|
Data Sheet |
Negotiable |
|
||||
