Product Summary

The MSP430F148IPMR family of ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs.

Parametrics

Absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to + 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC+0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature (unprogrammed device): -55℃ to 150℃; (5)Storage temperature (programmed device): -40℃ to 85℃.

Features

Features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Ultralow-Power Consumption; (3)Five Power-Saving Modes; (4)Wake-Up From Standby Mode in less than 6 μs; (5)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (6)12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature; (7)16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers; (8)16-Bit Timer_A With Three Capture/Compare Registers; (9)On-Chip Comparator; (10)Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse; (11)Serial Communication Interface (USART), Functions as Asynchronous UART or Synchronous SPI Interface; (12)Family Members Include:; (13)Available in 64-Pin Quad Flat Pack (QFP) and 64-pin QFN; (14)For Complete Module Descriptions, See the MSP430x1xx Family User抯 Guide, Literature Number SLAU049.

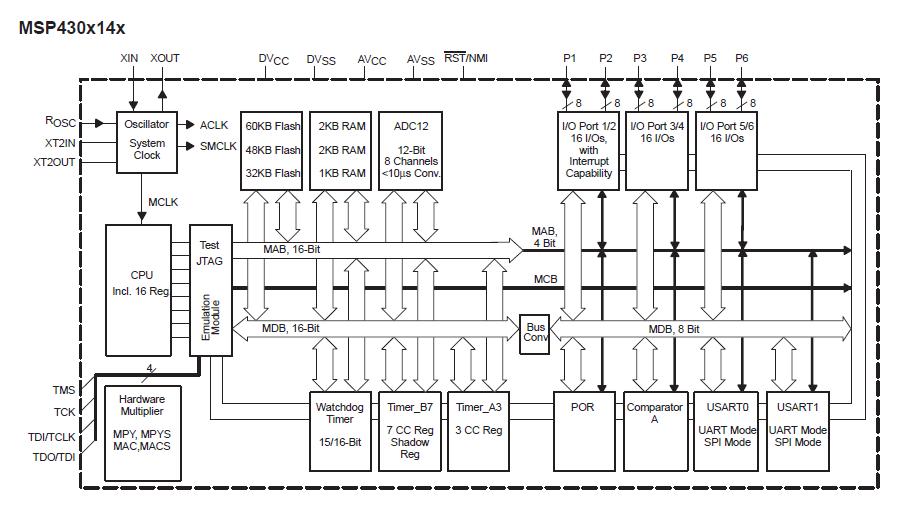

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MSP430F148IPMR
MSP430F148IPMR

Texas Instruments

16-bit Microcontrollers (MCU) 48 kB Flash 2KB RAM 12b ADC-2 USART-HW

Data Sheet

0-1: $5.26
1-10: $4.73
10-25: $4.21
25-50: $3.97
