Product Summary

The LM358DT is a Low power dual operational amplifier. The LM358DT consists of two independent, high-gain, internally frequency-compensated op-amps which are designed specifically to operate from a single power supply over a wide range of voltages. Application areas of the LM358DT include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems.

Parametrics

LM358DT absolute maximum ratings: (1)Supply voltage:±16V or ±32 V; (2)Input voltage:32 V; (3)Differential input voltage:32 V; (4)Output short-circuit duation:Infinite; (5)Input current:50 mA; (6)Operating free-air temperature range:0℃ to +70℃; (7)Storage temperature range:-65℃ to +150℃; (8)Maximum junction temperature:150℃; (9)Thermal resistance junction to ambient:125℃/W; (10)Thermal resistance junction to case:40℃/W; (11)HBM: human body model:300 V; (12)MM: machine model:200 V; (13)CDM: charged device model:1.5 kV.

Features

LM358DT features: (1)Internally frequency compensated; (2)Large DC voltage gain: 100 dB; (3)Wide bandwidth (unity gain): 1.1 MHz(temperature compensated); (4)Very low supply current per operator essentially independent of supply voltage; (5)Low input bias current: 20 nA(temperature compensated); (6)Low input offset voltage: 2 mV; (7)Low input offset current: 2 nA; (8)Input common-mode voltage range includes negative rails; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing 0 V to (VCC+ - 1.5V).

Diagrams

LM358DT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

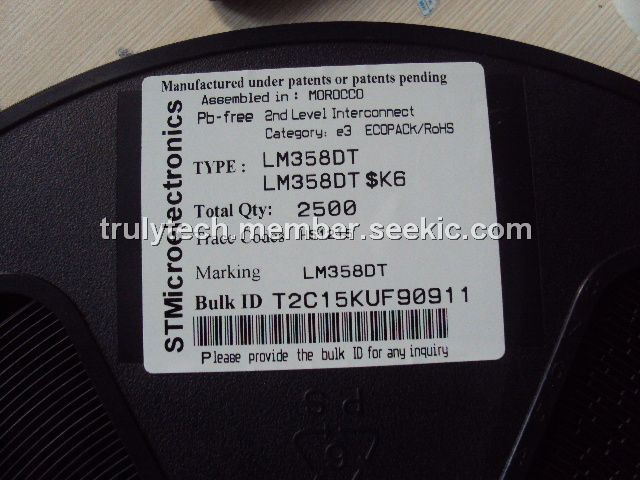

LM358DT
LM358DT

STMicroelectronics

Operational Amplifiers - Op Amps Dual Low Power

Data Sheet

0-1: $0.16
1-10: $0.15
10-100: $0.12
100-250: $0.09
