Product Summary

The HFJ11-2450E-L12 is a single port fastjack with integrated filters. The FastJack integrates the high performance of HALO magnetics into an industry standard connector design. The result is an extremely robust, IEEE802.3 compliant, solution. The HFJ11-2450E-L12 is available for most 10BASE-T and 10/100BASE-TX ICs.

Parametrics

HFJ11-2450E-L12 electrical specifications: (1)Operating Temp: 0 to +70℃; (2)Isolation Voltage: 1,500 Vrms; (3)Insertion Loss (5-10MHz): -1dB max; (4)Return Loss (5-10MHz): -15dB min; (5)Attenuation @ 30MHz: Transmit: -30dB min; Receive: -18dB min; (6)Cut Off Freq.: 17MHz typ; (7)Crosstalk (1-10MHz): -30dB min.

Diagrams

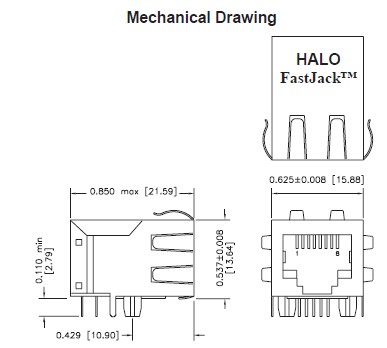

HFJ11-2450E-L12 Mechanical Drawing
