Product Summary

The HDSP-A903 is a low current seven segment display which is designed for applications requiring low power consumption.

Parametrics

HDSP-A903 absolute maximum ratings: (1)Average power per segment or DP: 64mW; (2)Peak forward current per segment or DP: 45mA; (3)DC forward current per segment or DP: 15mA; (4)Operating temperature range: -40 to +100℃; (5)Storage temperature range: -55 to +100℃; (6)Reverse voltage per segment or DP: 3.0V; (7)Wave soldering temperature for 3 seconds: 250℃.

Features

HDSP-A903 features: (1)Low power consumption; (2)Industry standard size; (3)Industry standard pinout; (4)Choice of character size; (5)Choice of colors; (6)Excellent appearance; (7)Design flexibility; (8)Categorized for luminous intensity; (9)Excellent for long digit string multiplexing.

Diagrams

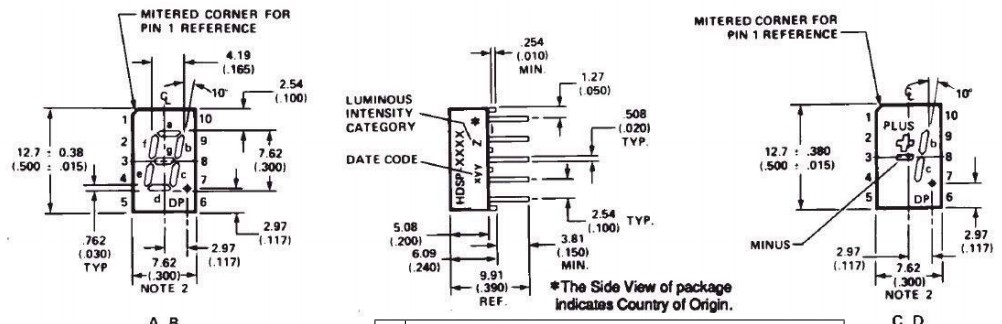

HDSP-A903 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HDSP-A903
HDSP-A903

Avago Technologies

LED Displays & Accessories Green 571nm 0.3in 7 Segment

Data Sheet

0-1: $2.08
1-25: $1.36
25-100: $1.21
100-250: $1.13
