Product Summary
The FH12S-40S-0.5SH(55) is a 0.5mm and 1mm Pitch Connector For FPC/FFC.
Parametrics
FH12S-40S-0.5SH(55) specifications: (1)Vendor: Hirose Electric Co Ltd (VA); (2)Category: Connectors, Interconnects; (3)Pitch: 0.020" (0.50mm); (4)Mounting Type: Surface Mount, Right Angle; (5)Features: Zero Insertion Force (ZIF); (6)Packaging: Cut Tape (CT); (7)Connector Type: Bottom Contacts; (8)Number of Positions: 40; (9)Locking Feature: Flip Lock; (10)Termination: Solder; (11)FFC, FCB Thickness: 0.30mm; (12)Lead Free Status: Lead Free; (13)RoHS Compliant .
Features
FH12S-40S-0.5SH(55) features: (1)Ease of Use and Space Savings; (2)Strengthened Flip-lock Actuator; (3)Supports Thin FPC (0.18mm); (4)Hirose Ensures Reliability; (5)Prevention of Solder Bridge; (6)Three different assembly types.

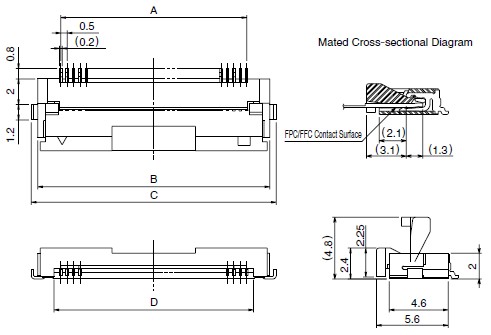

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FH12S-40S-0.5SH(55) |
Hirose Connector |
FFC / FPC Connectors 0.5MM 40 POS RA SMT FLIP LK ACT GLD PLTD |
Data Sheet |
|
|
||||||||||||||
