Product Summary
The DHM3FX80 is a hight voltage fast recovery diode.
Parametrics
DHM3FX80 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage,VRRM: 8kV; (2)Non-Repetitive Peak Reverse Voltage, VRSM: 10kV; (3)Average Forward Current, IF(AV): 1(63kHz C-Load), 3( 15.75kHz C-Load )mA ; (4)Surge(Non-Repetitive) Forward Current, IFSM: 0.5A; (5)Operating Junction Temperature, Tj: -40 ~ +120℃; (6)Storage Temperature, Tstg: -40 ~ +120 ℃.
Features
DHM3FX80 features: (1)For high resolution display and TV receivers.; (2)Diffused-junction.; (3)Excellent high temperature output characteristics ( Small leakage current at high temperature and excellent reverse characteristics ).

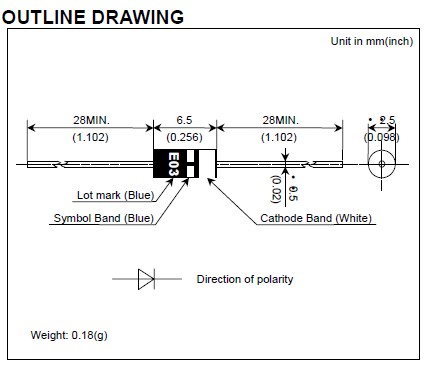

Diagrams
