Product Summary

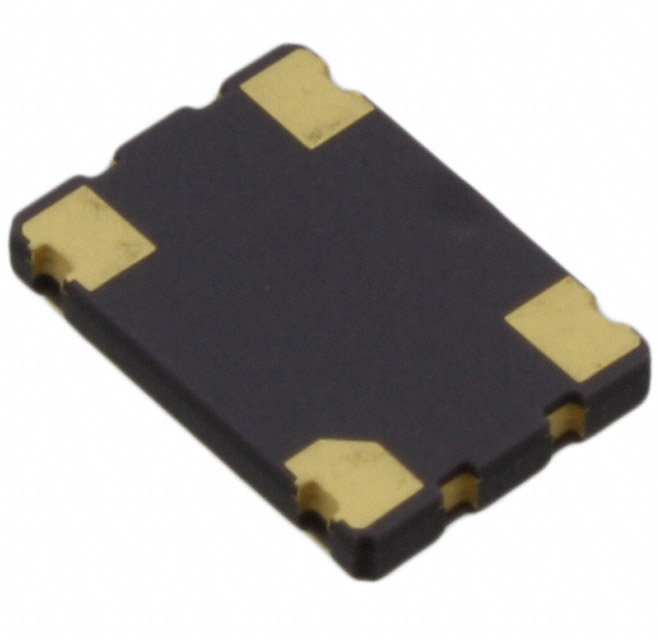

The CB3LV-3I-125M0000T is a ceramic packaged Clock oscillator offering reduced size and enhanced stability. The small size means it is perfect for any application. The enhanced stability means the CB3LV-3I-125M0000T is the perfect choice for today communications applications that require tight frequency control.

Parametrics

CB3LV-3I-125M0000T absolute maximum ratings: (1)Maximum Supply Voltage, VCC: -0.5 to 7.0 V; (2)Storage Temperature, TSTG: -55 to 125 ℃; (3)Frequency Range: 1.5 to160 MHz; (4)Frequency Stability, Δf/fO: 20, 25 or 50 ± ppm; (5)Aging, Δf at First year: 3 to 5 ± ppm; (6)Operating Temperature: Commercial: -20 min ℃, 25 typ ℃, 70 max ℃; Industrial: -40 min ℃, 25 typ ℃, 85 max ℃.

Features

CB3LV-3I-125M0000T features: (1)Standard 7.0x5.0mm Surface Mount Footprint; (2)HCMOS/TTL Compatible; (3)Fundamental and 3RD Overtone Crystals; (4)Frequency Range 1.5 – 160 MHz; (5)Frequency Stability, ±50 ppm Standard (±25 ppm and ±20 ppm available); (6)+3.3Vdc or +5.0Vdc Operation; (7)Operating Temperature to –40℃ to +85℃; (8)Output Enable Standard; (9)Tape & Reel Packaging; (10)RoHS/Green Compliant (6/6).

Diagrams

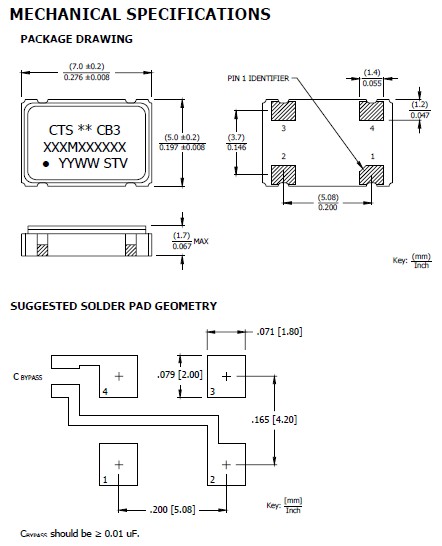

CB3LV-3I-125M0000T mechanical specifications
