Product Summary
The BZX84-C30 is a low-power voltage regulator diode. Its applications include general regulation functions.
Parametrics
BZX84-C30 absolute maximum ratings: (1)IF, continuous forward current: 200mA; (2)Ptot, total power dissipation: 250mA; (3)PZSM, non-repetitive peak reverse power dissipation: 40W; (4)Tstg, storage temperature: +150℃; (5)Tj, junction temperature: +150℃.
Features
BZX84-C30 features: (1)Total power dissipation: max. 250mW; (2)Three tolerance series: ±1%, ±2% and approx. ±5%; (3)Working voltage range: nom.2.4 to 75V; (4)Non-repetitive peak reverse power dissipation: max. 40W.

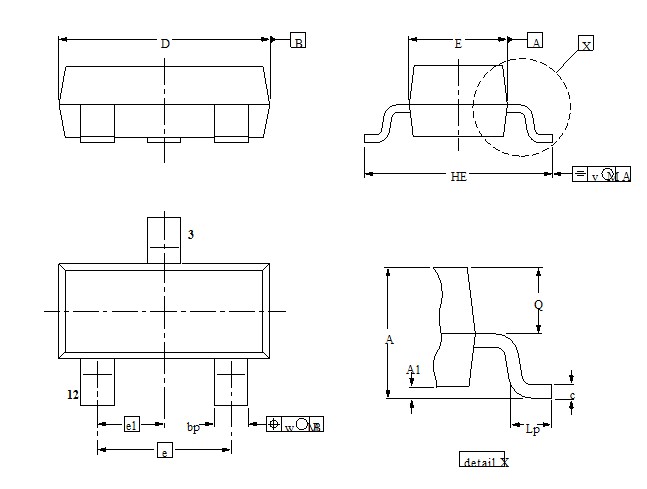

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BZX84-C30 /T3 |
NXP Semiconductors |
Zener Diodes DIODE ZENER 5 PCT TAPE-11 |
Data Sheet |
Negotiable |
|
||||||||||||
|
BZX84-C30,215 |
NXP Semiconductors |
Zener Diodes 250mW 30V |
Data Sheet |
|
|
||||||||||||
|
BZX84-C30,235 |
NXP Semiconductors |
Zener Diodes DIODE ZENER 5 PCT |
Data Sheet |
|
|
||||||||||||
