Product Summary

The BTA08-600BW is an 8A Triacs. The BTA08-600B is suitable for general purpose AC switching. The BTA08-600BW can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuit.

Parametrics

BTA08-600BW absolute maximum ratings: (1)It Value for fusing:45As; (2)Critical rate of rise of on-state current IG =2xIGT ,tr ≤ 100 ns:50 A/μs; (3)Peak gate current:4 A; (4)Average gate power dissipation:1 W; (5)Storage junction temperature range:- 40℃ to + 150℃; (6)Operating junction temperature range:- 40℃ to + 125℃.

Features

BTA08-600BW features: (1)IT(RMS):8A; (2)VDRM/VRRM:600V and 800V; (3)IGT (Q1):5mA to 50mA.

Diagrams

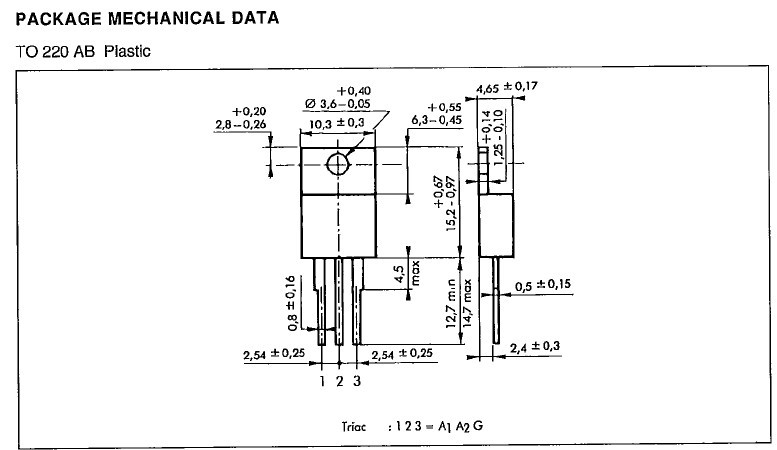

BTA08-600BW dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTA08-600BW3G
BTA08-600BW3G
ON Semiconductor
Triacs 8A 50mA 600V IGT 3 QUAD INTERNL ISLTD
Data Sheet
0-1: $0.57
1-25: $0.46
25-100: $0.40
100-250: $0.35
BTA08-600BWRG
BTA08-600BWRG
STMicroelectronics
Triacs 8 Amp 600 Volt
Data Sheet
0-1: $0.59
1-10: $0.52
10-100: $0.48
100-250: $0.43
