Product Summary

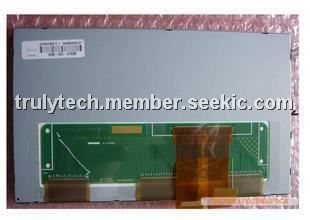

The AT080TN03 V.7 is an 8.0 inch LCD.

Parametrics

Absolute maximum ratings: (1)Power voltage: VCC:-0.3V to 5V, AVDD:-0.5V to 13.5V, VGH:-0.3V to 18V, VGL:-15V to 0.3V, VGH-VGL:33V ; (2)Input signal voltage: V1~V7:0.4AVDD to AVDD+0.3V, V8~V14:-0.3V to 0.6AVDD; (3)Operation Temperature:-30℃ to 85℃ ; (4)Storage Temperature:-30℃ to 85℃.

Features

Features: (1)LCD size:8.0 inch(Diagonal); (2)Driver element:a-Si TFT active matrix; (3)Resolution:800X3(RGB)X480; (4)Display mode:Normally White, Transmissive; (5)Dot pitch:0.0736(W)X0.2070(H) mm; (6)Active area:176.64(W)X99.36(H) mm; (7)Module size:192.8(W)X116.9(H)X6.4(D) mm; (8)Surface treatment:Anti-Glare; (9)Color arrangement:RGB-stripe; (10)Interface:Digital; (11)Backlight Power consumption:2.376W (Typ.); (12)Panel Power consumption:268mW (Typ.); (13)Weight:241.7g.

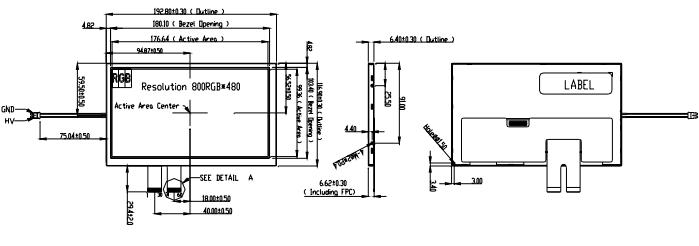

Diagrams
