Product Summary

The 10BQ100TRPBF is a surface mount schottky rectifier which is designed for applications requiring low forward drop and very small foot prints on PC boards.

Parametrics

10BQ100TRPBF absolute maximum ratings: (1)Maximum average forward current, IF(AV): 1.0A; (2)Maximum peak one cycle non-repetitive surge current, IFSM, 5μs sine or 3 μs rect. pulse: 780A; 10ms sine or 6ms rect. pulse: 38A; (3)Non-repetitive avalanche energy, EAS: 1.0mJ; (4)Repetitive avalanche current, IAR: 0.5A.

Features

10BQ100TRPBF features: (1)Small foot print, surface mountable; (2)Low forward voltage drop; (3)High frequency operation; (4)Guard ring for enhanced ruggedness and long term reliability; (5)Compliant to RoHS directive 2002/95/EC; (6)Designed and qualified for industrial level.

Diagrams

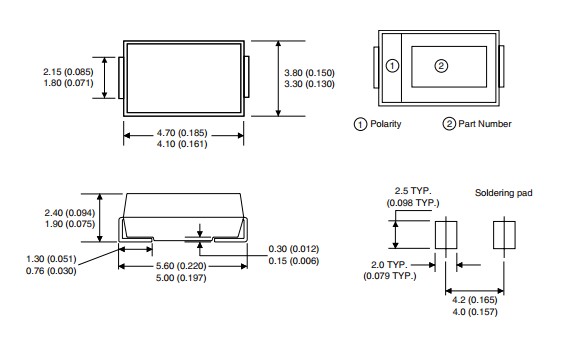

10BQ100TRPBF dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
10BQ100TRPBF
10BQ100TRPBF

DIODE SCHOTTKY 100V 1A SMB
Data Sheet
0-1: $0.38
1-10: $0.31
10-25: $0.27
25-100: $0.23
100-250: $0.20
250-500: $0.17
500-1000: $0.13
